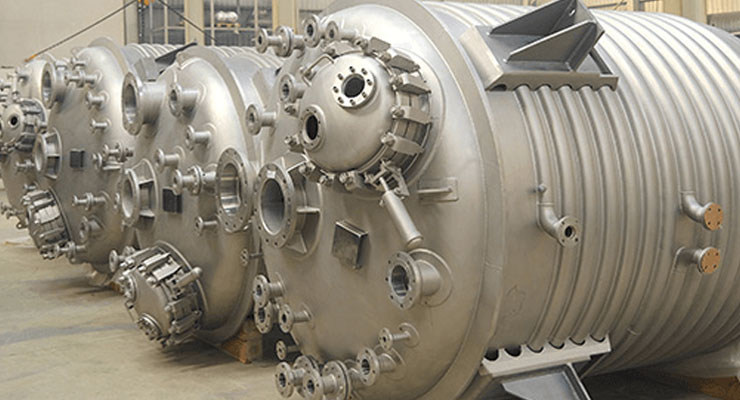

Reactors are critical components in chemical engineering and various industries, designed to facilitate controlled chemical reactions. These reactors come in different types and configurations, each suited for specific reaction conditions and requirements. They play a vital role in the production of chemicals, pharmaceuticals, polymers, and many other products.
Operate with all reactants loaded into the reactor at the start, and products are removed after the reaction is complete.
Suitable for small-scale production and processes that require precise control over reaction time and conditions.
Commonly used in pharmaceuticals, fine chemicals, and specialty chemicals.
Reactants are continuously fed into the reactor, and products are continuously removed.
Suitable for large-scale production and processes that benefit from steady-state conditions.
Types include:
Plug Flow Reactors (PFR): Also known as tubular reactors, these have a continuous flow of reactants through a cylindrical pipe. Ideal for reactions with a consistent reaction rate along the length of the reactor.
Continuous Stirred-Tank Reactors (CSTR): Also known as mixed flow reactors, these have a constant flow of reactants and products with continuous mixing. Suitable for reactions that need uniform composition throughout the reactor.
A combination of batch and continuous operations, where one or more reactants are added continuously or in stages, while the product is removed batch-wise.
Used for reactions that require gradual addition of a reactant to control reaction rate and heat generation.
Consist of a packed bed of catalyst particles, through which the reactants flow.
Commonly used in catalytic processes where the reaction occurs on the surface of solid catalysts.
Widely used in petrochemical, pharmaceutical, and environmental applications.
Solid catalyst particles are suspended in an upward flow of gas or liquid, creating a fluid-like state.
Provides excellent heat and mass transfer, suitable for reactions requiring uniform temperature and catalyst distribution.
Used in processes like catalytic cracking in the petroleum industry.
Combine reaction and separation in a single unit by using a membrane to selectively separate products or reactants.
Enhance reaction efficiency and selectivity, often used in hydrogen production and purification processes.
Utilize light (usually UV or visible light) to initiate and drive chemical reactions.
Used in processes like photopolymerization, photocatalysis, and synthesis of fine chemicals.
Miniaturized reactors with small channels or chambers, allowing precise control over reaction conditions.
Suitable for fast, exothermic reactions and research and development of new processes.
Understanding the rate of reaction and how it changes with concentration and temperature is crucial for reactor design.
Efficient transfer of heat and mass within the reactor is essential to maintain optimal reaction conditions and avoid hotspots or concentration gradients.
The choice of materials for reactor construction must be compatible with the reactants, products, and operating conditions to ensure durability and safety.
Reactors must be equipped with appropriate safety measures, including pressure relief systems, temperature and pressure sensors, and emergency shutdown systems.
The reactor design should consider scalability from laboratory to pilot plant to full-scale production.
Optimizing reactor design and operation to minimize costs while maximizing yield and productivity is essential for commercial viability.
